Hypothesis and Confidence Interval Calculations for Cp and Cpks

Posted on by

Folks,

I am reposting an updated blog post on Cp and Cpk calculations with Excel, as I have improved the Excel spreadsheet. If you would like the new spreadsheet, send me an email at [email protected].

One of the best metrics to determine the quality of data is Cpk. So, I developed an Excel spreadsheet that calculates and compares Cps and Cpks.

———————————————————————————————————-

Folks,

It is accepted as fact by everyone that I know that 2/3 of all SMT defects can be traced back to the stencil printing process. A number of us have tried to find a reference for this posit, with no success. If any reader knows of one, please let me know. Assuming this adage is true, the right amount of solder paste, squarely printed on the pad, is a profoundly important metric.

In light of this perspective, some time ago, I wrote a post on calculating the confidence interval of the Cpk of the transfer efficiency in stencil printing. As a reminder, transfer efficiency is the ratio of the volume of the solder paste deposit divided by the volume of the stencil aperture. See Figure 1. Typically the goal would be 100% with upper and lower specs being 150% and 50% respectively.

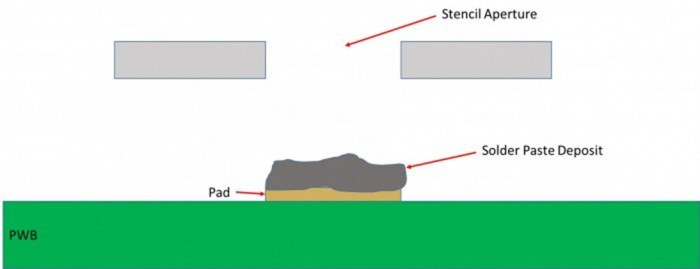

Figure 1. The transfer efficiency in stencil printing is the volume of the solder paste deposit divided by the volume of the stencil aperture. Typically 100% is the goal.

I chose Cpk as the best metric to evaluate stencil printing transfer efficiency as it incorporates both the average and the standard deviation (i.e. the “spread”). Figure 2 shows the distribution for paste A, which has a good Cpk as its data are centered between the specifications and has a sharp distribution, whereas paste B’s distribution is not centered between the specs and the distribution is broad.

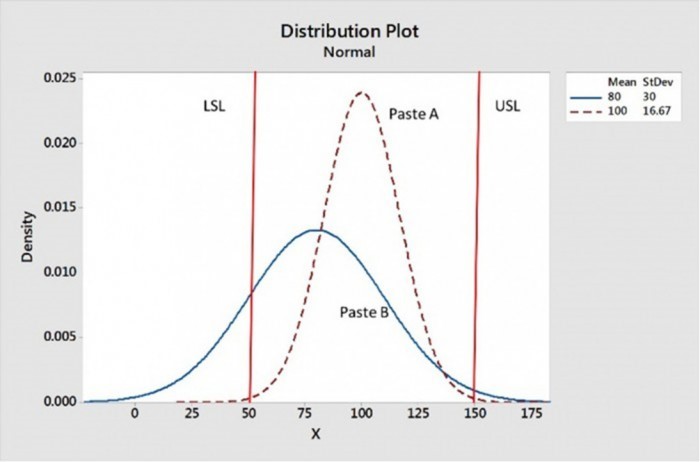

Figure 2. Paste A has the better transfer efficiency as its data are centered between the upper and lower specs, and it has a sharper distribution.

Recently, I decided to develop the math to produce an Excel® spreadsheet that would perform hypothesis tests of Cpks. As far as I know, this has never been done before.

A hypothesis test might look something like the following. The null hypothesis (Ho) would be that the Cpk of the transfer efficiency is 1.00. The alternative hypothesis, H1, could be that the Cpk is not equal to 1.00. H1 could also be that H1 was less than or greater than 1.00.

As an example, let’s say that you want the Cpk of the transfer efficiency to be 1.00. You analyze 1000 prints and get a Cpk of 0.98. Is all lost? Not necessarily. Since this was a statistical sampling, you should perform a hypothesis test. See Figure 3. In cell B16, the Cpk = 0.98 was entered; in cell B17, the sample size n = 1000 is entered; and in cell B18, the null hypothesis: Cpk = 1.00 is entered. Cell B21 shows that the null hypothesis cannot be rejected as false as the alternative hypothesis is false. So, we cannot say statistically that the Cpk is not equal to 1.00.

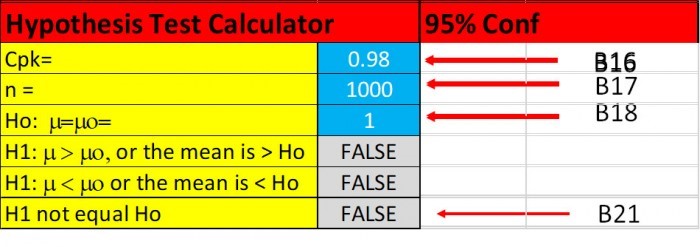

Figure 3. A Cpk = 0.98 is statistically the same as a Cpk of 1.00 as the null hypothesis, Ho, cannot be rejected.

How much different from 1.00 would the Cpk have to be in this 1000 sample example to say that it is statistically not equal to 1.00? Figure 4 shows us that the Cpk would have to be 0.95 (or 1.05) to be statistically different from 1.00.

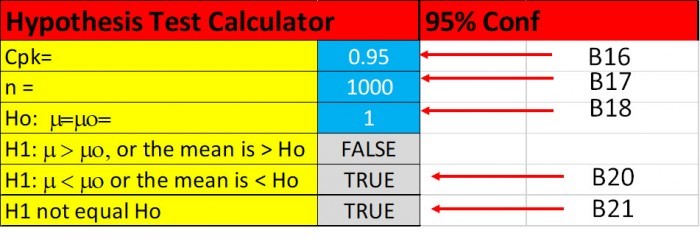

Figure 4. If the Cpk is only 0.95, the Cpk is statistically different from a Cpk = 1.00.

The spreadsheet will also calculate Cps and Cpks from process data. See Figure 5. The user enters the upper and lower specification limits (USL, LSL) in the blue cells as shown. Typically the USL will be 150% and the LSL 50% for TEs. The average and standard deviation are also added in the blue cells as shown. The spreadsheet calculates the Cp, Cpk, number of defects, defects per million and the process sigma level as seen in the gray cells. By entering the defect level (see the blue cell), the Cpk and process sigma can also be calculated.

Figure 5. Cps and Cpks calculated from process data.

The spreadsheet can also calculate 95% confidence intervals on Cpks and compare two Cpks to determine if they are statistically different at greater than 95% confidence. See Figure 6. The Cpks and sample sizes are entered into the blue cells and the confidence intervals are shown in the gray cells. Note that the statistical comparison of the two cells is shown to the right of Figure 6.

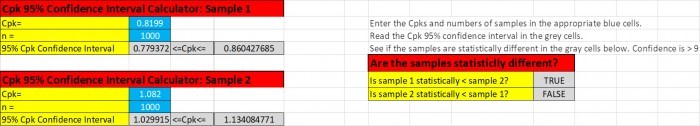

Figure 6. Cpk Confidence Intervals and Cpk comparisons can be calculated with the spreadsheet.

This spreadsheet should be useful to those who are interested in monitoring transfer efficiency Cpks to reduce end-of-line soldering defects. It is not limited to calculating Cps and Cpks of TE, but can be used for any Cps and Cpks. I will send a copy of this spreadsheet to readers who are interested. If you would like one, send me an email request at [email protected].

Cheers,

Dr. Ron

Calculating Confidence Intervals on Cpks

Posted on by

Let’s look in on Patty, it’s been awhile.

Patty was looking forward to sleeping in.  Normally she was up very early, sometimes before 5:30 am, after usually getting to bed too late, so she was looking forward to an alarm set at 7:45 am. The kids were off from school and Rob was taking them skiing, so all agreed a 7:45 am wake up time was reasonable.  Since she had no early meetings, her scheduled 9 am arrival at her Ivy University office was also in the cards.

Patty was sleeping soundly when she heard her seven-year old twin sons shouting, “Mom! Dad! Come quickly.”   At the same time, their two-year old beagle, Duchess, started barking.

Her heart pounding, Patty raced to the racket now being produced by this energetic trio.  As she arrived she saw her sons and Duchess looking out of their back window to see a beautiful female deer eating from their bird feeder, just 30 feet away. The entire family was involved in a bird counting exercise and had noticed, several times, that the bird feeder was “wiped out” overnight. This mystery was now solved.

The entire family agreed that it was hard to be angry at the doe, as deer are such beautiful creatures.

Figure 1.  A Female Deer at the Bird Feeder at Patty’s House



It was 6:15 am and it didn’t seem to make sense to go back to bed.  So, Patty stayed up and was off to Ivy U in less than 30 minutes.

Patty had a rather light week as she had guest speakers for her two lectures.  However, she was sitting in for one of the engineering school’s senior professors later in the day.  This fellow prof had asked her to sub for him as he was called to an emergency meeting overseas.  Her topic was manufacturing processes; one with which she felt very comfortable.  But, she had to admit to being a bit nervous sitting in for one of Ivy U’s most famous professors.

As was her usual practice, Patty checked her email first.  After going through the first 5 or 6, she saw an email with the subject header, “Ivy U Professor Wins Prestigious Queen Elizabeth Prize for Engineering.”  As she opened the article, she was stunned as she saw a photo of the professor for whom she was substituting later in the day.  The article went on to explain that this prize was like the “Nobel Prize” for engineering.

As she finished her emails she was relishing the thought of having a less hectic day and week ahead.  Maybe she would even have time to read the Wall Street Journal during a relaxing lunch.  Suddenly, her phone rang, startling her a little.  She picked up the receiver to hear a familiar voice.

“Professor Coleman, this is your most faithful student Mike Madigan,” Madigan cheerfully said.

Madigan was CEO of ACME at large electronics assembly contractor. Patty worked at ACME before becoming a professor at Ivy U. Her husband, Rob, and sidekick, Pete, were also ACME employees, but were now all at Ivy U.  Pete was a research assistant and Rob was just becoming a research professor.  Although they all enjoyed their time at ACME, they were much happier at Ivy U.  All three had a part-time consulting contract with ACME and Madigan was typically their main contact at their former employer.

“Mike! What’s up?” Patty said cheerfully.

“We are evaluating a new solder paste and I’m concerned we might make a mistake if we switch,” Mike responded.

“How so?” Patty asked.

“Well, we agreed that consistency in the transfer efficiency (TE) of the stencil printed deposits was the most important criteria,” Madigan began.

“That sounds reasonable as most of our past work has shown that a consistent TE is a strong determinant of high first-pass yields,” Patty responded.

“Right! But the difference between the pastes is only two percent. The old paste has a Cpk of 0.98 and the new paste 1.00,” Mike went on.

“I sense there is more to the story,” Patty suggested.

“Yeah. The new paste has a poorer response to pause,” Madigan said.

“Yikes!” Patty almost shouted.

Patty had shown, time and time again, that poor response-to-pause in the stencil printing process can hurt productivity and lower profitability considerably.

“My sense is the two percent difference in Cpk, might not be significant,” Mike suggested.

“Mike, I think you are on to something. What printing specs were you using and how many samples did you test?” Patty asked.

“The lower TE spec was 50% and the upper 150%. We tested 1,000 prints,” Madigan answered.

“Let me do some homework and I’ll get back to you,” Patty said.

“One problem. Can you get back by 3 pm today? The new solder paste supplier is coming for a meeting at 4PM and is pressing us,” Mike pleaded.

“OK. Will do,” Patty said, sighing a bit.

“There goes my somewhat relaxing day,” she thought.

It was a good thing she had already prepared her lecture and that it was scheduled for 4:30PM.

For several hours Patty thought and searched through some textbooks on statistical process control.  Finally, she came upon the solution to the problem in Montgomery’s Introduction to Statistical Quality Control.

“Perfect!” she thought.

She did finish early enough that she could read the WSJ over lunch, marveling, as always, that she was the only person her age that enjoyed reading a real newspaper.

She called Madigan at 3 pm.

“Mike, I think I have your answer.  I found a formula to calculate the confidence intervals of Cpks,” Patty started.

“And the answer is?” Madigan asked expectantly.

“The Cpk 95% confidence interval on the new paste is 0.95 to 1.05, however the old paste is 0.93 to 1.03,” Patty began.

“So, even I can sense that they aren’t different,” Mike commented.

“Yes, since the confidence intervals overlap, they are not statistically different,” Patty agreed.

Figure 2. The Confidence Interval of the Cpk on the New Paste is 0.95 to 1.05.



They chatted for a while and Madigan asked if Patty could join the first 20 minutes of the meeting by teleconference.  It was a bit close to her lecture start time, but she agreed.

Patty had met Madigan’s son at West Point when she visited there to be an evaluator for a workshop two years ago.  She decided to ask how he was doing.

“Mike, how is your son doing at West Point?” she asked.

“Thanks for asking. He is now a Firstie and was in the running for First Captain, but he just missed it.  It’s a good thing he takes after his mom,” Madigan proudly responded.

“Wow! That’s great,” Patty replied.

“I have to admit though, my wife and I are a bit nervous. He has chosen armor as his branch and there is a good chance he will see combat sometime in his career,” Madigan responded with a bit of concern in his voice .

They chatted for a while more and Patty was touched to see so much humanity in Mike Madigan.  He seemed much changed from his gruffness of earlier years.

Cheers,

Dr. Ron

As always, some of this story is based on true events



Cpk is Still King in Evaluating an SMT Solder Paste Printing Process

Posted on by

Folks,

If you think about it, to evaluate any process you typically want to know its precision and accuracy. Look at the dart players in the Figure 1 below. The yellow player has good precision, but his accuracy is off. The green player has such poor precision, it is hard to tell if his accuracy is good. The yellow player will typically be easier to correct, as she just needs to change her aiming point.

Figure 1. The yellow player has greater precision. She only needs to change her aiming point.





















Recently I was asked to evaluate several solder pastes to determine which printed better. We used transfer efficiency (the volume of the stencil printed solder paste “brick” divided by the stencil aperture volume) as the evaluation metric, expressed in percent. So 100% would be the target. The lower specification limit we choose was 50% and the upper specification at 150%.

Figure 2. Data from Pastes A and B.



A good result would be an average of 100% with a “tight” distribution. The “tightness” of the distribution being determined by the standard deviation. Figure 2 shows data from two pastes. Note that Paste A has an average of 100% and a standard deviation of 16.67%, whereas Paste B has an average of 80% and a standard deviation of 30%. Clearly, Paste A is superior to Paste B in both accuracy and precision. But what is the best way to express this difference? Is there one metric that will do it? Cpk is the answer.

Cpk is one metric that is sensitive to both the accuracy and precision. Cpk is defined as:







Where x is the average and S is the standard deviation.

Using these equations, we see that the Cpk of Paste A is 1.0, whereas the Cpk of Paste B is 0.333. Note that Paste B has a significant number of data points (about 17%) outside of the specification limits, however, Paste A has almost no data points out of specification.
So when evaluating most processes, Cpk tells it all!

Cheers,
Dr. Ron
